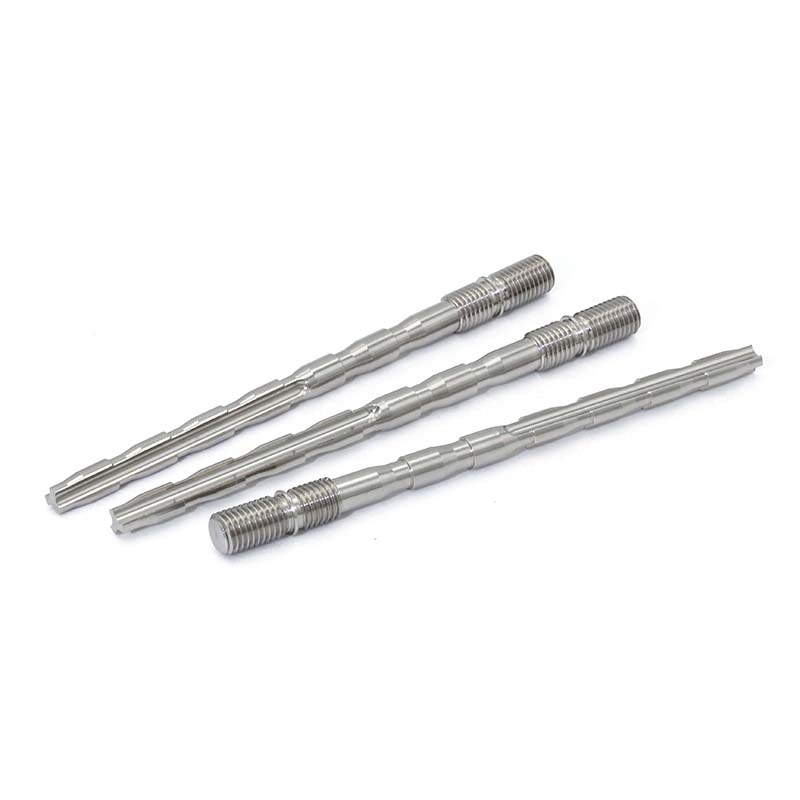

CNC Machining Shaft Parts

Our CNC Machining Shaft Parts are precision-engineered rotational components designed for reliable torque transmission in a wide range of mechanical systems. Manufactured with advanced CNC Machining, these shafts offer exceptional dimensional accuracy and surface finish, ensuring optimal performance in high-speed and high-load applications. Available in multiple Materials, including steel, stainless steel, aluminum, titanium, and engineering plastics, our custom CNC shaft parts are tailored to meet exact specifications. Whether you require CNC Shaft Components for automotive systems, industrial machinery, or high-performance equipment, we provide complete customization services to deliver precisely engineered solutions.

Key Features

• High Precision Machining – Achieve tight tolerances and minimal runout for high precision CNC shaft parts.

• Wide Material Selection – Supports CNC Machined Steel Shaft Parts, CNC Machined Stainless Steel Shaft Parts, CNC Machining Aluminum Shaft Parts, and CNC Machined Titanium Shaft Parts.

• Custom Design Capability – Complex geometries, splines, keyways, threads, and grooves in one setup with CNC Turned Shaft Parts.

• Superior Surface Finish – Achievable Ra down to 0.4 µm for smooth operation and reduced wear.

• Full Inspection & Quality Control – Each CNC Machined Shaft Component undergoes strict dimensional and surface verification.

Manufacturing Process

1. Material Preparation – Selection of steels, stainless steels, aluminum alloys, titanium, or engineering plastics.

2. CNC Machining – Precision CNC Shaft Components are turned, milled, drilled, and grooved on advanced CNC centers.

3. Heat Treatment – Hardening or tempering for enhanced strength, wear resistance, and fatigue life.

4. Surface Finishing – Polishing, grinding, or coating to meet performance and aesthetic requirements.

5. Final Inspection – CMM, runout, and concentricity checks ensure all Precision CNC Turned Shaft Parts meet strict tolerances.

Material Selection

• Carbon Steel (4140, 4340) – High strength and durability for heavy-duty shafts.

• Stainless Steel (303, 304, 316) – Corrosion-resistant for demanding environments.

• Aluminum Alloys (6061, 7075) – Lightweight, high-strength options for high-speed applications.

• Titanium (Ti-6Al-4V) – Exceptional strength-to-weight ratio for aerospace and medical use.

• Engineering Plastics (PEEK, Delrin) – Lightweight and chemical-resistant for specialized applications.

Surface Treatment Options

• Polishing – Smooth, high-quality finishes for reduced friction.

• Electroplating (Nickel, Chrome, Zinc) – Enhances corrosion resistance and wear performance.

• Anodizing – Ideal for aluminum shafts for durability and color options.

• Black Oxide – Increases wear resistance and reduces light reflection.

Precision & Quality Control

• Tolerances: ±0.005 mm (±0.0002 in) for critical features.

• Surface Roughness: Ra 0.4 µm (16 µin) or better.

• Runout & Concentricity: Typically within 0.01 mm (0.0004 in) TIR.

• Inspection Tools: CMM, dial indicators, profilometers, and vibration analyzers.

• Quality Standards: ISO 9001:2015 certified, full traceability, material certifications available.

Applications

• Automotive Industry – Custom CNC Shaft Components for Automotive, drive axles, camshafts, and transmission shafts.

• Industrial Machinery – CNC Shaft Parts for Industrial Equipment, pump shafts, spindles, and conveyor rollers.

• Electric Motors – CNC Shaft Parts for Electric Motors, high-speed rotors, and precision drives.

• Aerospace & Defense – Landing gear components, turbine shafts, and actuator systems.

• Medical Devices – Surgical tools, robotic arms, and imaging equipment requiring precision CNC turned shaft parts.

• Consumer Electronics – Miniature shafts for hard drives, optical devices, and precision gears.

FAQ

Q1: Can you provide custom CNC shaft parts?
Yes, we specialize in custom CNC shaft parts, including complex threads, splines, keyways, and grooves.

Q2: What materials are available for CNC shaft components?
We offer steel, stainless steel, aluminum, titanium, and engineering plastics (PEEK, Delrin) to meet specific performance needs.

Q3: What tolerances can you achieve?
Our high precision CNC shaft parts maintain tolerances as tight as ±0.005 mm (±0.0002 in) for critical diameters.

Q4: What is the typical lead time?
Production usually ranges from 7–15 days, depending on material and complexity.

Q5: Do you offer surface finishing and heat treatment?
Yes, we provide polishing, anodizing, electroplating, black oxide, and heat treatment services for CNC machined shaft components.
