PCB Standoffs

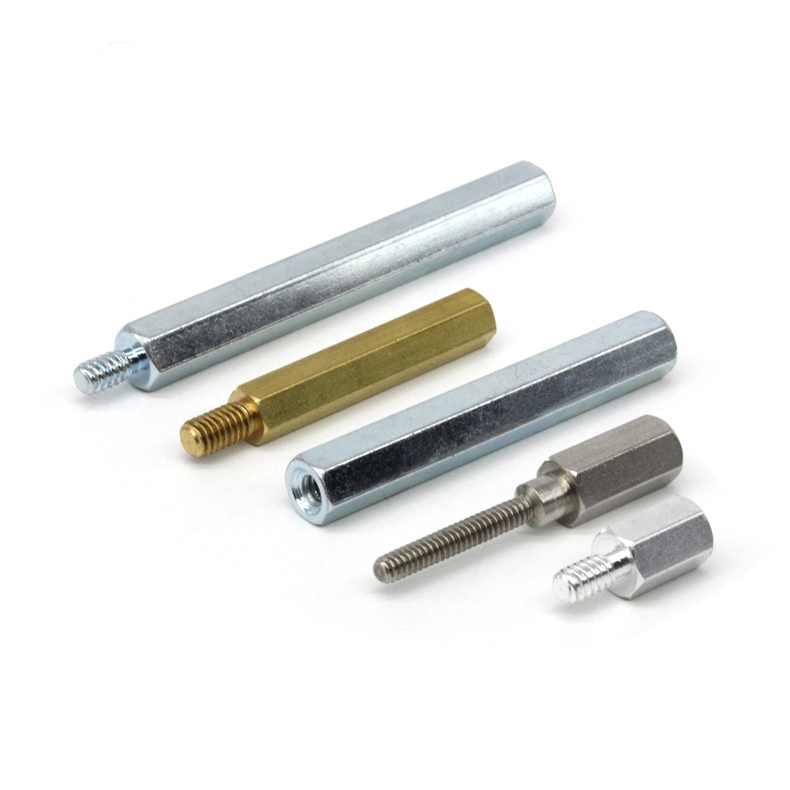

PCB Standoffs are precision-engineered components designed to provide mechanical support, electrical insulation, and thermal management between printed circuit boards (PCBs) and their mounting surfaces. Available in various Materials, threads, and mounting configurations, PCB standoffs ensure stable board elevation, protect components from vibration, and help maintain air gaps essential for thermal dissipation and signal isolation.

Standard models comply with MIL-STD-348A, ASME B1.1, and IPC-2221 spacing rules. Popular configurations include male-female, female-female, snap-in, and adhesive-backed variants, supporting thread types such as #4-40, #6-32, and M2 to M4 in metric.

Key Features and Advantages

• High Mechanical Strength
  With compressive load ratings between 50–200N, standoffs prevent PCB flexure or damage during assembly and usage.

• Precision Board Spacing
  Available in standard heights ranging from 3 mm to 20 mm, with tolerance control within ±0.1 mm to maintain consistent air gaps and electrical clearances.

• Electrical Isolation
  Non-conductive standoffs (e.g., nylon, PEEK) provide dielectric strengths up to 15kV, critical for high-voltage circuit isolation.

• Vibration and Shock Resistance
  Metal standoffs meet MIL-STD-810G standards, tolerating 5–15G vibration loads and ensuring reliability in harsh environments.

• Broad Temperature Range
  Operation spans from -40°C to +105°C for plastic variants and -55°C to +175°C for aerospace-grade metal standoffs.

• Customizable Threading and Heads
  Available in round, hex, knurled, and slotted head styles for manual or automated assembly.

Manufacturing Process

Our PCB standoffs are manufactured using high-precision, fully automated processes to ensure consistent quality and dimensional accuracy:

• CNC Machining (Metal Variants) – for tight tolerances on thread pitch, length, and outer diameter

• Injection Molding (Plastic Variants) – using high-temperature nylon or glass-filled composites for dimensional stability

• Thread Rolling or Tapping – ensures strong engagement and thread integrity for load-bearing performance

• Ultrasonic Welding or Adhesive Bonding – for custom non-threaded push-fit or adhesive-backed variants

Every production batch is monitored under SPC (Statistical Process Control) to maintain process stability and yield.

Material Options

Surface Treatments (Metal Variants)

• Anodizing (Aluminum): Provides 5–25 µm oxide layer for corrosion protection and electrical insulation

• Passivation (Stainless Steel): Enhances corrosion resistance per ASTM A967

• Nickel Plating (Brass): Improves wear resistance, electrical conductivity, and visual aesthetics

• Black Oxide (Steel): Reduces reflection and adds mild corrosion resistance

Precision & Inspection Capabilities

• Height Tolerance: ±0.1 mm standard, ±0.05 mm available on request

• Thread Accuracy: Manufactured to ISO or ASME thread standards (e.g., 6H or 2B class)

• Vibration Test Compliance: MIL-STD-810G Method 514.7

• Dielectric Testing: Up to 15kV for insulative variants (ANSI/ESD S20.20 compliant)

• Torque Testing: Ensures installation force within 0.5–1.2 N·m for M3 variants

• Microscopic Crack Inspection: Especially for polymers exceeding 5,000 thermal cycles

Application Industries

Consumer Electronics

• Used in smartphones, tablets, and wearables

• Nylon or PEEK standoffs provide insulation, shock resistance, and EMI shielding clearance

Industrial Automation

• In control boxes and sensor modules

• Stainless steel standoffs ensure strength in IP67-rated enclosures

Automotive Electronics

• Employed in ECUs, BMS modules, infotainment systems

• Glass-filled nylon meets SAE J1455 and ISO 16750-3 vibration standards

Aerospace and Defense

• Titanium or aluminum standoffs in avionics and radar systems

• Lightweight and high strength-to-weight ratio with DO-160G compliance

Medical Equipment

• Cleanroom-compatible nylon or passivated stainless steel standoffs

• USP Class VI and ISO 10993 material certification for imaging tools and diagnostic devices

Telecom & Networking

• UV-resistant, high dielectric strength standoffs for outdoor 5G antennas and routers

• Fire retardant PEEK options available

FAQ – Frequently Asked Questions

Q1: What sizes of PCB standoffs are available?
A: Common lengths: 3mm, 5mm, 6mm, 10mm, 12mm, 15mm. Thread options include #4-40, M2.5, M3, M4.

Q2: Which material should I choose?
A:

• Nylon: General electronics, non-conductive

• Aluminum: Lightweight and conductive

• Stainless steel: Harsh environments, high strength

• Glass-filled nylon: High vibration or temperature settings

• PEEK: UV, chemical, and high-voltage demanding applications

Q3: Do you offer custom lengths and threads?
A: Yes. We support full OEM customization of thread type, length, outer diameter, and even surface finish.

Q4: Are the standoffs RoHS and REACH compliant?
A: Absolutely. All materials meet global environmental compliance standards. Certification documents can be provided.

Q5: How should I store PCB standoffs?
A: Store at 23±5°C, 40–60% RH, and in ESD-safe packaging to avoid static damage and degradation.

Q6: When should PCB standoffs be replaced?
A:

• Thread deformation >30%

• Surface corrosion affecting >10% of area

• Crack detection in plastic standoffs post 5,000 thermal cycles
