Round Threaded Standoff

The Round Threaded Standoff is a precision-engineered cylindrical fastener featuring internal and/or external threading, designed to create accurate spacing between components in electronic, Automotive, and mechanical assemblies. Available in male, female, or male-female thread configurations, these round spacers ensure alignment, support, and insulation across structural and electronic layers.

With metric sizes ranging from M2 to M12, and standard lengths between 3mm to 100mm, our threaded round standoffs are manufactured to tight dimensional tolerances and comply with international standards such as ISO, MIL-STD-810G, and AEC-Q100.

Key Features & Benefits

• High Precision Tolerances:
  Diameter tolerance: ±0.05mm
  Thread pitch alignment: ±0.025mm
  Concentricity (TIR): ≤0.1mm

• Versatile Thread Options:
  Fully threaded or partial thread in male, female, or hybrid formats
  Standard ISO thread pitch (e.g., M2: 0.4mm, M4: 0.7mm)

• Wide Size Range:
  Metric sizes from M2 to M12
  Lengths from 3mm up to 100mm

• Excellent Vibration Resistance:
  Torque resistance up to 15Nm (M12)
  Withstands vibration loads of 5–15G

• EMI Shielding:
  Conductive Material standoffs provide 60–90dB shielding effectiveness up to 1GHz

• Temperature & Environmental Durability:
  Withstands thermal cycling, humidity (85°C/85% RH), and corrosive conditions

Precision Machining & Manufacturing Process

Our round threaded standoffs are manufactured using high-precision CNC turning, thread rolling, and automatic machining centers. We maintain consistency with strict in-process controls and advanced CMM (Coordinate Measuring Machine) inspections.

Additional processing includes:

• Knurling or slotting for anti-rotation locking

• Deburring and ultrasonic cleaning for superior cleanliness

• GO/NO-GO thread testing and micrometer-level dimensional checks

Material Options

Custom materials available upon request (e.g., titanium for aerospace-grade needs).

Surface Treatment Options

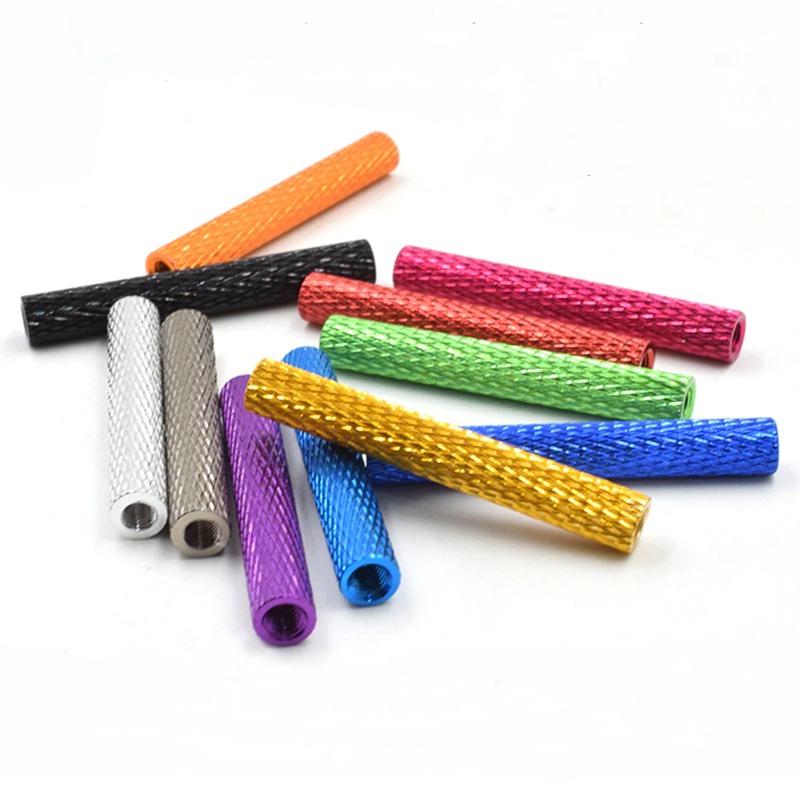

• Anodized Aluminum: 5–25μm oxide layer, color-customizable

• Zinc-Nickel Plating: 8–12μm for 1000+ hours salt spray resistance

• Nickel or Chrome Electroplating

• Perfluoropolyether (PFPE) Lubricant Coating for anti-corrosion

• Conformal Coating (Acrylic/Urethane) for dielectric protection

Precision & Quality Control

• Thread measurement: ±0.01mm GO/NO-GO gauges

• Diameter/length: ±0.001mm micrometer accuracy

• Torque validation: 80% retention testing after installation

• Visual inspection under 10x magnification for cracks and defects

• Cleanliness ensured through ultrasonic cleaning + DI rinse

All products are RoHS-compliant and manufactured under ISO 9001:2015-certified processes.

Application Fields

Electronics & PCB Assembly

• Used for mounting PCBs with ±0.1mm C-C tolerance

• Provides grounding and EMI shielding for sensitive components

Mechanical & Industrial Equipment

• Vibration-dampening spacer in automated machines

• Hex or knurled heads prevent unwanted rotation

Automotive Electronics & Sensors

• Suitable for thermal shock and humidity cycling

• Fulfills AEC-Q100 Grade 2 standards

Aerospace Systems & Avionics

• Lightweight yet strong aluminum or titanium spacers

• FAR 25.853 compliant for flame resistance

FAQ – Frequently Asked Questions

Q1: What is the torque limit for installing round threaded standoffs?
A: It depends on size. For example, M2: 0.1–0.3Nm, M4: 1.2–2.0Nm, M6: 4.0–6.0Nm. Always refer to the datasheet.

Q2: Can you offer custom lengths or thread pitches?
A: Yes. We support custom machining with minimum order quantities depending on the material and dimension.

Q3: Are your standoffs RoHS and REACH compliant?
A: Yes. All materials and coatings are certified for RoHS, and documentation is available upon request.

Q4: How are standoffs packaged for export?
A: Vacuum-sealed + VCI bags for metal; nylon versions are UV-protected and moisture-isolated.

Q5: Do you offer testing reports?
A: Yes. COC, dimensional inspection reports, salt spray test data, and torque testing reports are available.
