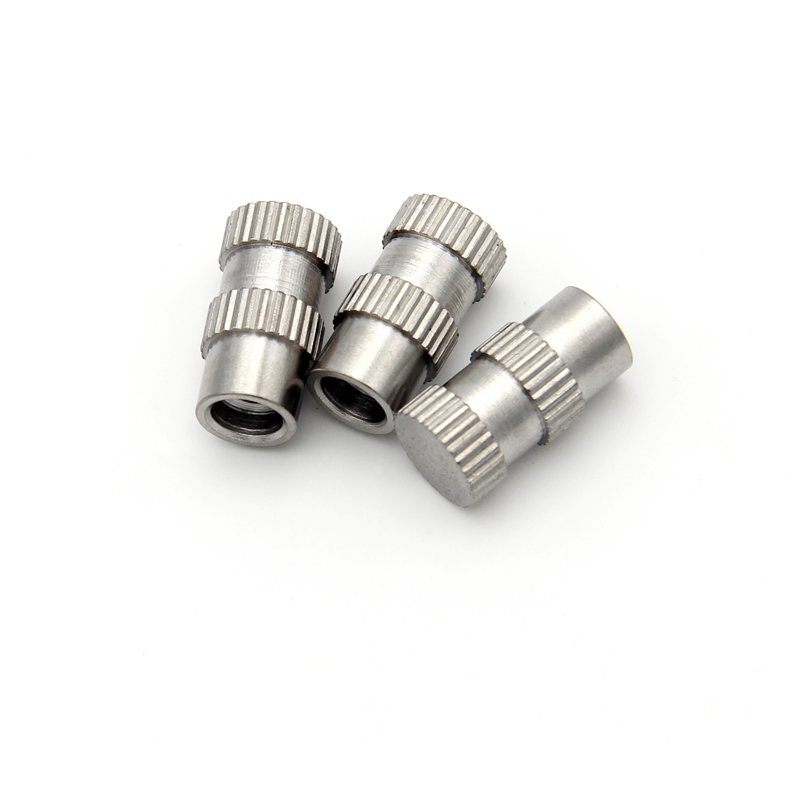

At JIESHENG HARDWARE, we specialize in producing Custom Auto Connector Mold Inserts tailored to your exact specifications. With over 20 years of experience in CNC Machining services, we provide precision-engineered solutions for automotive mold components that demand exceptional accuracy, durability, and performance. Our Custom Auto Connector Mold Inserts are widely used in automotive electrical systems, ensuring reliable connections in critical environments.
Product Overview
Our Custom Auto Connector Mold Insert solutions are designed to meet stringent automotive standards. Each insert is crafted with high-precision CNC Machining, ensuring consistent dimensions and superior functionality in connector mold assemblies.
Highlights:
Precision tolerance: ±0.005mm ~ ±0.01mm (as required)
Surface roughness: Ra 0.4 - Ra 1.6
100% customizable shapes, sizes, and designs
Compatible with high-cavity, complex automotive connector molds
Extended service life through advanced Material selection and surface treatments
CNC Machining Capabilities
At JIESHENG HARDWARE, our advanced machining capabilities allow us to deliver superior Custom Auto Connector Mold Insert parts:
| Capability | Details |
|---|---|
| CNC Turning | Max diameter: 300mm / Length: 500mm / Tolerance: ±0.01mm |
| CNC Milling | 3-axis, 4-axis, 5-axis milling / Max workpiece size: 1000 x 600 x 500mm |
| EDM | Wire cut & sinker EDM for complex internal structures |
| Grinding | Precision surface grinding, cylindrical grinding to Ra 0.4 |
| Secondary Operations | Drilling, tapping, reaming, laser marking |
| Inspection | CMM, height gauge, projector, hardness tester, surface roughness tester |
We can handle:
Prototype and low-volume custom connector mold inserts
Mass production with stable quality
Complex geometries and deep cavity features
Material Options
We offer a wide selection of materials for Custom Auto Connector Mold Insert production, ensuring optimal performance based on your application:
| Material | Properties | Applications |
|---|---|---|
| Tool Steel (SKD61 / H13 / 1.2344) | High hardness, heat resistance | High-volume connector molds |
| Stainless Steel (SUS420 / 1.2083) | Corrosion resistance, wear resistance | Connector molds for harsh environments |
| Carbide (Tungsten) | Extreme wear resistance | High-speed injection connector molds |
| Brass / Copper Alloy | Good thermal conductivity | Specialized automotive connector components |
| Aluminum Alloy (6061 / 7075) | Lightweight, good machinability | Prototype mold inserts |
| Customized Materials | Based on customer requirements | Special automotive connector solutions |
Surface treatments available:
Nitriding / Ion nitriding
PVD / TiN / TiCN coatings
Black oxide
Polishing / mirror finish
Hard chrome plating
Why Choose JIESHENG HARDWARE?
20+ years of CNC machining experience — Trusted by automotive OEMs and mold manufacturers
Complete customization — We produce exactly to your drawings and requirements
Advanced equipment — CNC turning, milling, EDM, and grinding under one roof
Strict QC process — 100% inspection before delivery
Competitive pricing & on-time delivery — High value, short lead times
Applications of Custom Auto Connector Mold Insert
Our Custom Auto Connector Mold Inserts are widely used in:
Automotive wiring harness connectors
Sensor and actuator connector molds
EV (electric vehicle) high-voltage connector molds
Waterproof and high-temperature resistant connector assemblies
Other automotive electronic module housings
Frequently Asked Questions (FAQ)
Q1: Can you produce Custom Auto Connector Mold Inserts from my CAD design?
A1: Yes! We support both 2D and 3D files (DWG, DXF, STEP, IGES). Our engineers will review and confirm the design before production.
Q2: What is your MOQ for Custom Auto Connector Mold Insert orders?
A2: We accept low-volume and prototype orders, as well as mass production. MOQ can be as low as 1 piece for testing.
Q3: How do you ensure the precision of the CNC machined mold insert?
A3: We use calibrated CMMs, height gauges, and other precision instruments for 100% dimensional inspection. All parts undergo strict QC before shipment.
Q4: What is your lead time?
A4: Standard lead time is 7-15 working days, depending on part complexity and order quantity. Rush orders can be accommodated upon request.
Q5: Can you provide surface treatments or coatings?
A5: Yes. We offer nitriding, PVD coatings, polishing, black oxide, and other treatments to enhance durability and performance.
About JIESHENG HARDWARE
JIESHENG HARDWARE is a professional manufacturer that focuses on customizing High-Precision Hardware Spare Parts, with more than 20 years of experience serving global customers. Our core strength lies in CNC machining services, delivering precision parts for automotive, electronics, medical, and industrial applications. We are committed to quality, innovation, and customer satisfaction.
