What Files Are Needed for CNC Machining?

When requesting a quote for custom CNC Machining services, one of the most common questions engineers, product designers, and purchasing managers ask is: "What files do I need to send for CNC Machining?"

The quality and completeness of your design files directly affect the quotation speed, manufacturing lead time, machining accuracy, and overall project cost. At JeaSnn, we provide precision CNC machining services, including CNC milling, CNC turning, 5-axis machining, rapid prototyping, and low-volume production, serving customers worldwide across Industries such as automotive, aerospace, robotics, electronics, medical devices, and industrial equipment.

In this guide, we'll explain exactly what files are required for CNC machining projects, which formats are preferred, and how providing the right information can help you receive faster quotations, lower costs, and higher-quality custom-machined parts.

Why Are Correct CNC Files So Important?

Many customers believe that uploading a simple CAD model is enough. However, professional CNC manufacturing requires much more than geometry alone.

Providing complete manufacturing files helps our engineering team:

Generate accurate CNC machining quotations

Perform Design for Manufacturability (DFM) analysis

Identify potential machining issues early

Reduce manufacturing costs

Improve dimensional accuracy

Shorten production lead times

Avoid engineering changes during production

Ensure high-quality finished parts

Incomplete files often result in delays, additional communication, and increased production costs.

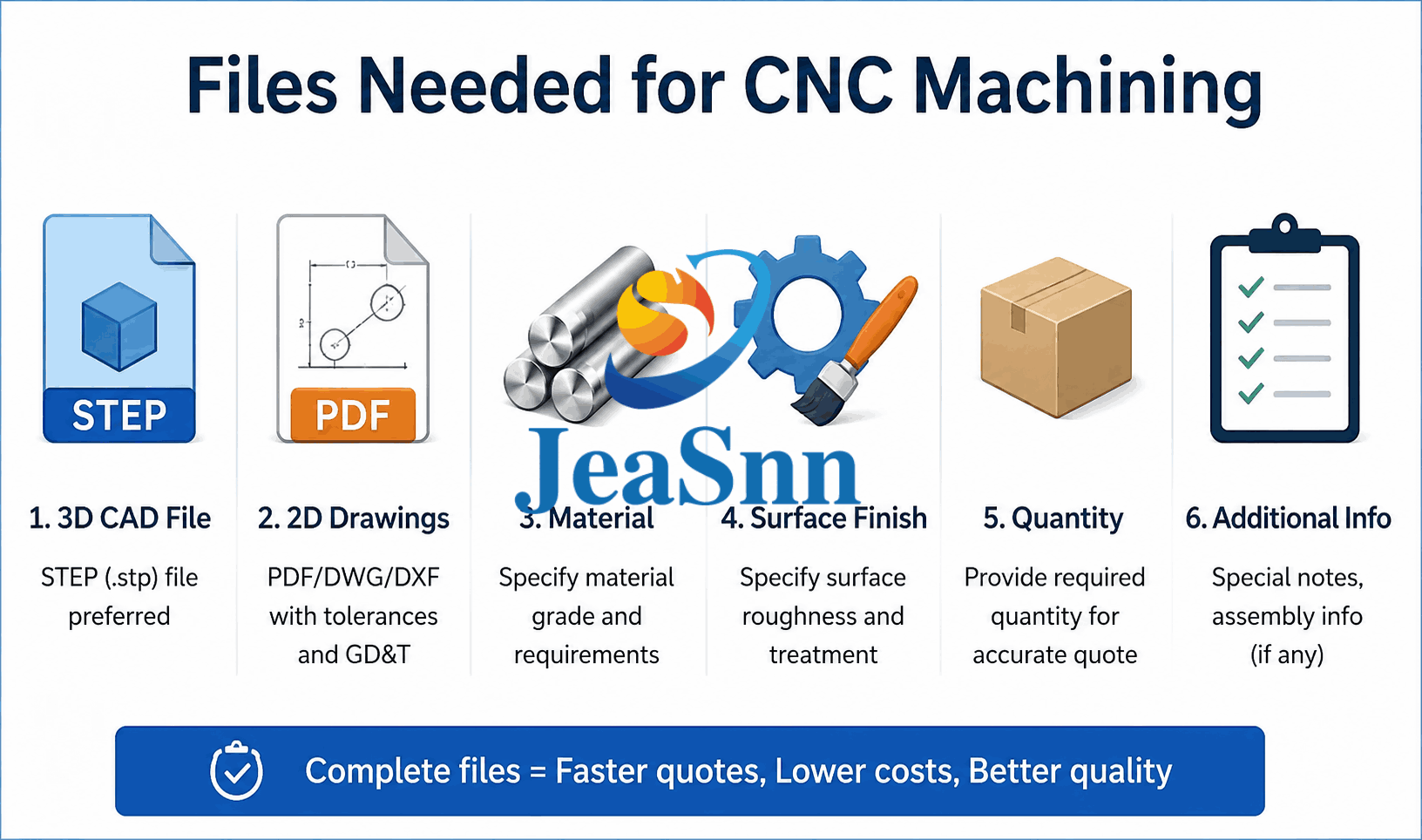

1. 3D CAD Files: The Most Important File for CNC Machining

The primary file required for custom CNC machining is the 3D CAD model. This file contains the geometry needed to create CNC toolpaths.

Among all formats, STEP (.stp) is considered the industry standard because it preserves solid geometry accurately and can be opened by almost all professional CAD/CAM systems.

Why STEP Files Are Preferred

STEP files provide:

Precise geometric data

Better compatibility between CAD software

Smaller file sizes

Accurate curves and surfaces

Faster CAM programming

Lower engineering costs

If available, Parasolid (.X_T) files can also provide excellent compatibility for complex precision CNC machining projects.

2. 2D Engineering Drawings: Critical for Precision Parts

Although a 3D model defines the shape of the part, it often does not provide all the manufacturing requirements.

For tight tolerance CNC machining, we strongly recommend providing 2D engineering drawings in:

PDF

DWG

DXF

Your engineering drawing should include:

Dimensional Tolerances

Examples:

±0.01 mm

±0.005 mm

ISO 2768 standards

GD&T requirements

Surface Finish Requirements

Examples:

Ra 0.8 μm

Ra 1.6 μm

Mirror polishing

Bead blasting

Sandblasting

Critical Features

Specify:

· Hole diameters

· Thread specifications

· Bearing fits

· Datum references

· Flatness

· Parallelism

· Concentricity

· Position tolerances

Providing a detailed drawing significantly reduces the risk of manufacturing errors and inspection issues.

3. Material Specifications

The next essential information is the material requirement.

Different materials require different cutting tools, machining parameters, and production strategies.

Common CNC Machining Materials

Aluminum CNC Machining

Stainless Steel CNC Machining

Titanium CNC Machining

Engineering Plastics

4. Surface Finishing Requirements

Many custom CNC-machined parts require post-processing.

Common surface treatments include:

Clear anodizing

Black anodizing

Hard anodizing

Electropolishing

Powder coating

Passivation

Zinc plating

Nickel plating

Chrome plating

Black oxide

Sand blasting

Bead blasting

Brushing

Mirror polishing

5. Quantity Requirements

Production quantity significantly affects manufacturing strategy and pricing.

Typical production volumes include:

Prototype CNC machining: 1–10 pcs

Low-volume CNC machining: 10–500 pcs

Medium production: 500–5000 pcs

Mass production machining: 5000+ pcs

Knowing your quantity helps determine:

Machine selection

Fixture design

Tooling strategy

Cost optimization

Get a Fast CNC Machining Quote from CNC Parts China

At CNC Parts China, we specialize in:

Precision CNC machining services

Custom CNC milling services

CNC turning services

5-axis CNC machining

Rapid CNC prototyping

Low-volume manufacturing

Precision aluminum machining

Stainless steel machining

Titanium CNC machining

Plastic CNC machining

Our engineering team reviews every uploaded file and provides:

Free DFM analysis

Competitive pricing

Fast quotation turnaround

Professional engineering support

Global shipping services

Whether you need a single prototype or large-scale production, submitting complete manufacturing files ensures faster quotations, lower costs, and better quality custom-machined parts.
