Precision Metal Washers

 A washer is by no means merely a plain perforated metal disc. Demanding sectors — aerospace high-performance turbines, subsea oil manifolds, automatic automotive transmissions and precision medical instruments — rely on custom CNC-machined washers as critical engineered hardware. Their key roles include distributing extreme axial force, counteracting thermal expansion variances, sealing high-pressure working media, eliminating mechanical backlash and avoiding catastrophic galvanic corrosion.

JeaSnn delivers expertise in precision CNC machining, custom turning, milling services, and tight-tolerance hardware fabrication. Mass-produced standard off-the-shelf hardware commonly suffers from dimensional deviations, coarse burrs, and unstable Material quality; by contrast, our custom metal washer production complies with micro-inch level precision specifications. No matter if you need ultra-miniature washers for electronic actuators or heavy-duty hardened steel washers for industrial equipment, custom CNC machining of washers delivers superior joint stability and leak-tight operation even amid the harshest working conditions.

Why Standard Stamped Washers Fail

High-volume stamped washers manufactured on high-speed blanking presses are suitable for generic construction applications and low-cost consumer products. Nevertheless, they come with inherent production drawbacks once deployed within precision mechanical systems:

Edge Roll-over and Prominent Burrs

Metal is sheared by stamping dies during fabrication, resulting in sharp burrs on one face and rolled, rounded edges on the opposite side. Such defects hinder full flat contact between mating surfaces.

Internal Residual Stress and Component Warping

The intense mechanical force applied in stamping triggers localized plastic deformation and residual internal stress. When torque is applied, these washers easily lose flatness and become distorted.

Loose Dimensional Tolerances

Ordinary stamped washers normally feature wide tolerance bands ranging from ±0.1 mm to ±0.3 mm. This level of accuracy fails to meet requirements for high-precision bearing preloading and closely fitted hydraulic connections.

Constraints on Material Thickness and Hardness

Stamping dies struggle to cut ultra-thick stock or heat-treated superalloys. Processing these materials leads to accelerated tool abrasion as well as material cracking.

Core Functions and Structural Significance of Custom Metal Washers

Engineers need to align a washer’s physical properties with its target application to develop a reliable mechanical joint. Custom-fabricated metal washers perform multiple indispensable dynamic functions as outlined below:

3.1 Load Distribution and Substrate Protection

As high-tensile bolts are tightened, tremendous clamping force concentrates within a narrow annular zone. Where the clamped workpiece consists of softer materials — including 6061 aluminum, plastics, or carbon fiber composites — the bolt head or nut risks embedding into the contact surface. This results in local crushing and gradual loss of clamping force. Custom precision metal washers expand the bearing surface and uniformly disperse axial load throughout the joint.

3.2 Fine-Tuning of Axial Clearance via Shim Compensation

Tiny axial clearance can trigger severe vibration, excessive noise, and premature gear wear within rotating equipment, gearbox units, and spindle drive systems. Fabricated with stepped thickness options (e.g., 0.05 mm increments), custom CNC precision shims and washers empower assembly staff to carry out accurate calibration of axial gaps and bearing preload.

3.3 Anti-Vibration Performance and Joint Locking Integrity

Threaded fasteners tend to loosen gradually under cyclic dynamic loads, temperature fluctuations, and sustained mechanical vibration. Custom Belleville (conical), wave, and curved spring washers deliver persistent spring pressure against fastener heads. They sustain consistent joint clamping force even amid recurring thermal expansion or slight interface settlement.

Manufacturing Method Comparison: CNC Turning/Milling vs. Stamping

Custom Washer Profiles, Chamfers and Complex Geometric Configurations

Standard washers only come as simple flat rings. In contrast, custom metal washer fabrication supports the creation of tailored geometric characteristics purpose-built to address distinct mechanical difficulties:

Precision Flat Washers

Surface-ground on two faces to achieve optimum contact area and uniform load distribution.

Counterbore & Countersunk Washers

Engineered to fit socket head cap screws or flush flat-head bolts, delivering a neat, flush exterior profile after installation.

Grooved Sealing Washers

Featuring accurately CNC-machined annular grooves for housing O-rings, these washers guarantee dependable fluid sealing with elastomer or metal seals under pressurized working conditions.

Washers with Chamfered Inner and Outer Diameters

Machined with 30° or 45° entry bevels, which avoid interference with the transition fillet beneath high-strength bolt heads.

Spherical Seat Washers

Supplied as two-piece self-aligning assemblies. They compensate for angular misalignment (3° to 5° maximum) between threaded fasteners and uneven mounting surfaces.

Post-process surface treatments boost corrosion protection, wear capability, surface hardness, and aesthetics. cncmachingparts.com supplies a complete portfolio of finishing solutions:

Anodizing (Type II & Type III Hardcoat)

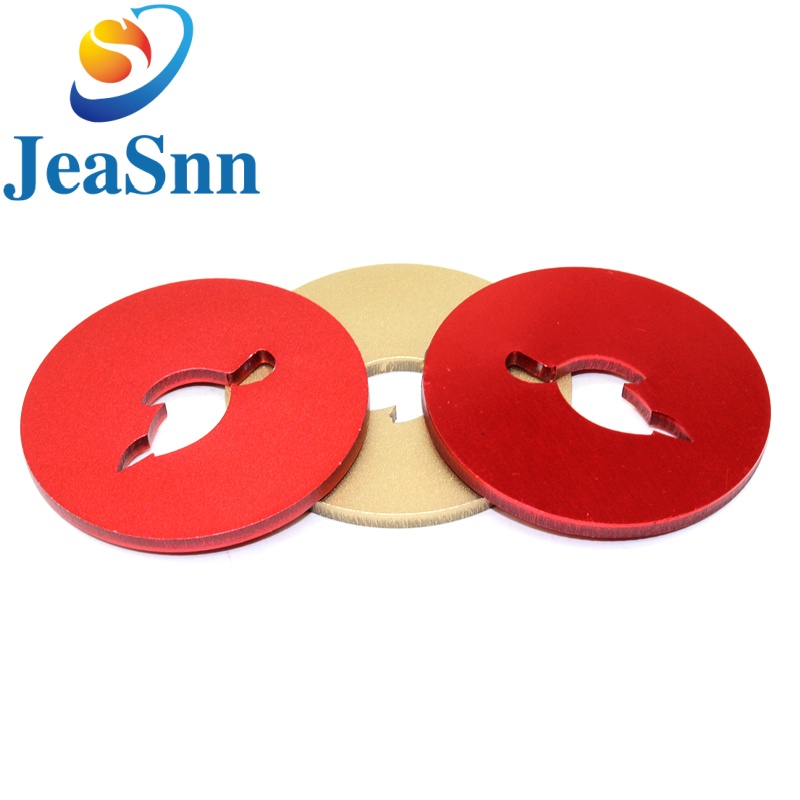

Guards aluminum washers from wear and corrosive attack, and is available in multiple color variants: clear, black, red and blue. The Type III hardcoat variant achieves maximum surface hardness of 60 HRC.

Electroless Nickel Plating (ENP)

Forms an even nickel-phosphorus film covering all workpiece surfaces, featuring both anti-corrosion performance and self-lubricating characteristics.

Passivation (ASTM A967)

Eliminates free iron contaminants on stainless steel washer surfaces and promotes the formation of a natural passive oxide barrier to inhibit corrosion.

Black Oxide Coating

Offers corrosion resistance and a low-gloss black look for carbon steel and stainless steel parts, without shifting critical tight dimensions.

Heat Treatment & Case Hardening

Induction hardening, vacuum quenching, and carburizing services enable high-strength steel washers to achieve target hardness levels of 45–60 HRC.

Design for Manufacturability (DFM) Guidelines for Custom Metal Washers

Adopt the following engineering suggestions in custom washer design to cut manufacturing expenses and reduce lead times:

Standardize Inner and Outer Diameter Proportions

Select outer diameter (OD) dimensions matching available raw bar stock wherever feasible. This reduces material removal volume during CNC turning operations.

Prevent Overly Thin Cross-Sections

Washers featuring ultra-thin walls paired with large outer diameters (such as 1.0 mm thickness with a 100 mm OD) are prone to machining distortion. Always maintain a sensible thickness-to-diameter ratio.

Adopt Standard Chamfer Specifications

Specifying 45° × 0.5 mm chamfers enables efficient one-pass deburring utilizing standard CNC lathe cutting tools.

Optimize Tolerance Allocation

Restrict ultra-tight micro-inch tolerances (±0.005 mm) exclusively to functionally critical mating surfaces, including thickness and inner diameter. Apply conventional tolerance ranges (±0.05 mm) to non-essential geometric features.

Why Partner with cncmachingparts.com for Custom CNC Washer Machining?

As a full-service custom hardware manufacturer, JeaSnn provides high-precision solutions tailored to your project requirements.

Complete Custom Hardware Expertise: Beyond precision metal washers, we specialize in high-precision custom CNC machined shafts, precision spacers, custom screws, and turned hardware components.

Advanced Multi-Axis Machining Fleet: Equipped with high-speed Swiss-type lathes, 3/4/5-axis CNC machining centers, and automated optical inspection equipment.

Flexible Order Quantities: Rapid prototyping (1–10 pieces) to full-scale production runs (100,000+ pieces).

Comprehensive Material Traceability: 100% material inspection with raw material Mill Test Certificates (MTC), RoHS compliance, and dimensional CMM inspection reports provided upon request.

Ready to Upgrade Your Precision Component Assemblies?

At JeaSnn, we deliver far more than standard hardware production. We offer tailored engineering solutions designed to deliver superior performance, reliable leak-tight sealing, and sustained resistance to dynamic fatigue for your mission-critical equipment.

From rapid prototyping of tight-tolerance custom metal washers and high-precision turned shafts to custom spacers and special threaded fasteners, our seasoned manufacturing engineers support your projects every step of the way — from initial design validation through mass production.

Please share your 2D or 3D files with us. engineer@cncpartschina.com
