Custom CNC Bushings Precision Machining for OEM Components

Custom CNC machined bushings may be compact mechanical parts, yet they exert a profound effect on an assembly’s reliability, alignment, motion performance and overall service lifespan. Deployed within automotive systems, industrial machinery, robotics, automation hardware, pumps, sensors and numerous other mechanical setups, well‑engineered bushings lower frictional resistance, offer shaft support, regulate motion and shield high‑value adjacent parts from accelerated wear.

Distinct from generic off-the-shelf bushings, custom CNC bushings are produced strictly in compliance with unique technical drawings, specified dimensions, selected Materials, defined tolerances and real-world operating demands. This renders them highly suitable for OEM producers and engineering groups developing specialized machinery or custom replacement components.

For enterprises seeking dependable suppliers of custom machined bushings, CNC Machining delivers ample design flexibility. It supports the production of varied diameters, wall thicknesses, internal bores, grooves, threads, flanges, and many other intricate part features.

This guide walks readers through the design and manufacturing workflow of custom CNC bushings. It covers frequently adopted material options, achievable tolerance ranges, performance impacts brought by surface finishing, as well as key factors to evaluate when soliciting quotes for high-precision custom components.

What Is a Custom CNC Bushing?

A bushing serves as a mechanical element to support, guide, space, and shield moving components. Most feature cylindrical or sleeve‑style geometry and fit between a shaft and mating hardware.

Unlike catalog‑based standard variants, a custom CNC bushing is fabricated strictly to the customer’s unique technical specifications. Subject to application needs, it can incorporate precision internal bores, outer diameters, flanges, shoulders, grooves (including oil grooves and snap‑ring grooves), internal or external threads, chamfers, keyways, slots, special profiles and variable wall thicknesses.

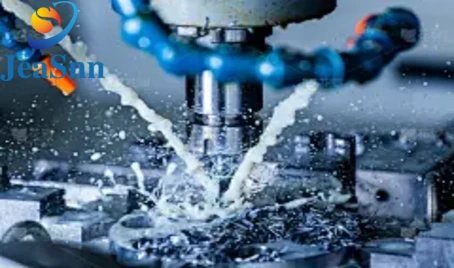

CNC turning forms the primary manufacturing process for cylindrical bushings. Additional processes such as CNC milling, drilling, boring and turn‑milling are implemented for more intricate design features. This production method enables OEMs to obtain custom metal parts perfectly matched to the precise specifications of their existing assemblies.

Why Choose Custom CNC Bushings for OEM Components?

OEM projects seldom share identical part specifications. A bushing fitted for robotic joints demands distinct material and tolerance parameters compared to units for automotive suspension systems or industrial pumps — this is where custom machining delivers clear value.

1. Precise, Drawing‑Driven Dimensions

Custom CNC machining fabricates bushings fully aligned with customer‑supplied drawings. Critical parameters cover inner diameter, outer diameter, overall length, shoulder diameter, flange thickness, groove and thread dimensions, concentricity, run‑out and surface roughness. High dimensional accuracy is essential for seamless installation within pre‑existing assemblies.

2. Application‑Tailored Material Selection

Custom Bushings are not restricted to material options for standard catalogue parts. OEM purchasers select materials according to actual working conditions, with options including stainless steel, carbon steel, alloy steel, aluminum, brass, bronze, copper alloys, engineering plastics and other specialty materials. CNCPartsChina provides custom‑made bushings in steel, stainless steel, aluminum, brass and bronze, supporting material selections fine‑tuned to individual application scenarios.

3. Optimized Compatibility with Existing Hardware

If standard‑size bushings cannot fit the designated installation envelope, custom-made parts remove the burden of reworking adjacent assembly structures. OEMs may need bushings featuring non-standard bores, unique outer diameters, custom flanges, tailored grooves, special lengths, or dedicated surface finishes. Rather than altering the whole machine to accommodate off-the-shelf hardware, manufacturers can produce precision custom bushings that conform to the original design intent.

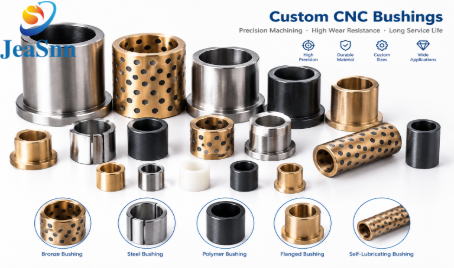

Common Types of Custom CNC Bushings

Different mechanical application scenarios call for customized bushing structures, and custom CNC machining delivers diverse bushing types to fit varied operational and assembly needs. The mainstream custom bushing styles are summarized as follows:

Sleeve Bushings are the most basic and widely adopted bushing type. Built with a solid cylindrical body and central inner bore, custom sleeve bushings primarily support rotating and sliding shafts, minimize operational friction, and sustain precise mechanical alignment. They allow fully tailored specifications in bore diameter, outer diameter, overall length, wall thickness, material composition, and surface finish. They are extensively applied in industrial machinery, automation devices, automotive parts, and various mechanical assemblies.

Flanged Bushings are differentiated by an integrated flange at one end of the cylindrical body. The unique flange structure enables precise axial positioning, enhances structural support, optimizes assembly control, and evenly distributes mechanical loads. This type of bushing is ideal for scenarios that require fixed installation inside equipment housings to avoid displacement during operation.

Spacer Bushings are professionally designed to maintain accurate spacing between mechanical components. They are widely used in mechanical assemblies, automotive systems, robotic equipment, structural frames, tool fixtures, and electronic devices. Since the dimensional accuracy of spacer bushings directly determines the overall geometric precision of finished assemblies, high-precision CNC machining is essential to guarantee consistent assembly performance.

Threaded Bushings come with custom internal or external threads. They enable detachable mechanical connections between components, facilitating convenient equipment installation, disassembly, and maintenance. All custom threaded bushings can be precisely machined in strict accordance with customer-specified thread standards and dimensional requirements to match diverse assembly specifications.

Bearing Bushings are specialized for supporting relative motion between mechanical parts. The service life and operational stability of bearing bushings rely heavily on optimized material selection and premium surface finishing. Proper material pairing and fine surface textures effectively reduce friction and combat abrasive wear, sustaining consistent, long-term performance of moving mechanical parts.

Materials for Custom CNC Bushings

Material selection is a core step in custom CNC bushing design, which depends on actual operating conditions such as load capacity, running speed, working temperature, corrosion exposure, frictional performance, lubrication conditions, and matched assembly parts.

Stainless steel bushings provide reliable mechanical strength and prominent corrosion resistance. Grade 304 stainless steel is applicable to general industrial scenarios, while 316 stainless steel features stronger anti-corrosion capability, making it suitable for marine, chemical and other harsh working environments. OEM projects require clear specification of steel grades on technical drawings.

Carbon steel and alloy steel bushings offer exceptional rigidity, structural strength and wear resistance. Targeted heat‑treatment processes can further improve their surface hardness and long‑term durability. Such bushings see extensive deployment across heavy‑duty machinery, automotive components, pumps, gear assemblies and construction machinery, with custom‑built variants available in sleeve, flange, spacer and cylindrical configurations.

Brass bushings feature excellent machinability, consistent frictional characteristics, reliable corrosion resistance and stable dimensional performance. They enable smooth mechanical movement and adapt perfectly to OEM projects ranging from prototype development to mass production.

Bronze Bushings are classic bushing and bearing materials. Featuring excellent friction and wear resistance, they perfectly accommodate sliding movement when paired with qualified shafts and standard lubrication systems, ideal for precision motion mechanical applications.

How to Select the Right Bushing Material

The material should be selected based on the complete application rather than one individual property.

Surface Finishing for Custom CNC Bushings

Machining alone may not provide the surface characteristics required for every application.

Surface treatment options can vary, determined by the selected material and real‑world operating conditions of the component.

Polishing

Polishing enhances surface smoothness, making it ideal for applications requiring smooth sliding motion or high-quality surface appearance.

Anodizing

Anodizing is mainly used for aluminum components.

It can improve surface protection, appearance, and wear resistance.

Zinc Plating

Zinc plating can improve corrosion resistance for suitable steel components.

It is commonly used for industrial hardware and mechanical components exposed to moisture.

Nickel Plating

Nickel plating can provide additional corrosion and wear resistance and may also improve the appearance of the component.

PTFE or Low-Friction Coatings

For certain applications where friction reduction is important, specialized coatings such as PTFE may be considered.

CNC Parts China lists polishing, electroplating, anodizing, zinc or nickel plating, and custom low-friction coatings among its available finishing options for custom bushings.

What Affects the Cost of Custom CNC Bushings?

Raw material alone does not determine the pricing of custom-made bushings. Multiple variables jointly shape the final quotation.

Material

Raw material costs and machinability vary significantly across different material grades.

Size

Bushings with large diameters or extended lengths consume more stock material and demand longer machining cycles.

Geometry Complexity

Basic sleeve style bushings are simpler to produce. By contrast, parts incorporating grooves, threads, cross-drilled holes, and flanged features involve more complex manufacturing work.

Tolerance Requirements

Strict tolerance specifications call for extra machining operations and thorough inspection procedures.

Surface Treatment

Value-adding processes including anodizing, plating, polishing and specialty coatings bring additional processing expenses.

Order Quantity

Prototyping orders carry higher per-unit costs compared to volume production runs. This arises because programming, tooling, and setup overheads are spread over fewer pieces.

Quality Inspection

Additional quality requirements such as CMM verification, dimensional test reports, and material certification will impact overall pricing.

For purchasers sourcing custom CNC components, submitting full and complete technical documentation at the outset is the most effective way to obtain precise quotations.

Why Choose CNC Parts China for Custom Bushing Manufacturing?

CNC Parts China specializes in custom precision metal components, providing high‑reliability CNC machining solutions for OEM and industrial applications. Boasting over 20 years of professional manufacturing experience, the company maintains strict compliance with ISO 9001:2015 and IATF 16949:2016 quality systems to ensure stable product quality and consistent delivery performance.

We integrate full-process machining Capabilities including CNC turning, milling and drilling, enabling the accurate fabrication of custom bushings with diverse geometric features per customer-specific drawings. Our product lineup covers a wide range of options, such as custom metal bushings, steel bushings, brass bushings, aluminum bushings, stainless steel bushings, and custom bushing sleeves. This comprehensive customization capability differentiates us from conventional standard bushing suppliers, perfectly meeting personalized engineering and assembly requirements.

We accommodate flexible project demands ranging from low-volume prototyping to large-batch mass production. No matter whether you need precision CNC machined bushings or standard OEM bushing components, our engineering team provides professional project assessment and tailored manufacturing services based on your technical drawings and actual application scenarios.

Conclusion

Custom CNC bushings are compact yet functionally critical mechanical parts that directly determine the positioning accuracy, motion stability, service durability, and overall operational reliability of mechanical assemblies.

Numerous vital factors influence both the performance and cost efficiency of custom bushings: material choice, bore tolerance, outer‑dimensional precision, concentricity, surface finish, real‑world working conditions, order volume and overall manufacturing costs.

Bear in mind that high‑performing custom bushings do not demand ultra‑tight tolerances across all dimensions. The core design principle is to configure targeted and reasonable precision for key functional features that directly impact assembly operation and performance, achieving a balance between usability and cost efficiency.
